A centralized vacuum unit replaces expensive cleaning with brooms, mobile vacuum cleaners or compressed air and provides a clean, employee-friendly workplace.
Centralized vacuum system for highly effective surface cleaning
It is necessary to provide a clean manufacturing environment, e. g., clean machinery and work areas in order to achieve optimal production results. Although brooms, mobile vacuum cleaners and blowing with compressed air are the most commonly used cleaning methods, they are not the most current form of cleaning technology. Especially during blowing with compressed air are several persons exposed to dispersed dust. This made the legislation impose a so called "blow-ban" for various industries. Keller Lufttechnik offers numerous stationary vacuum units that cost-effectively enhance productivity and efficiency, and require low maintenance.

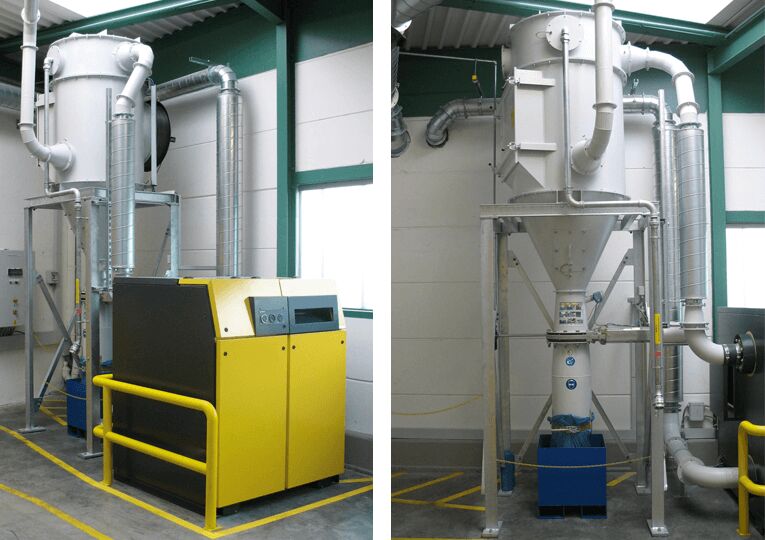

Centralized manual dust extraction system

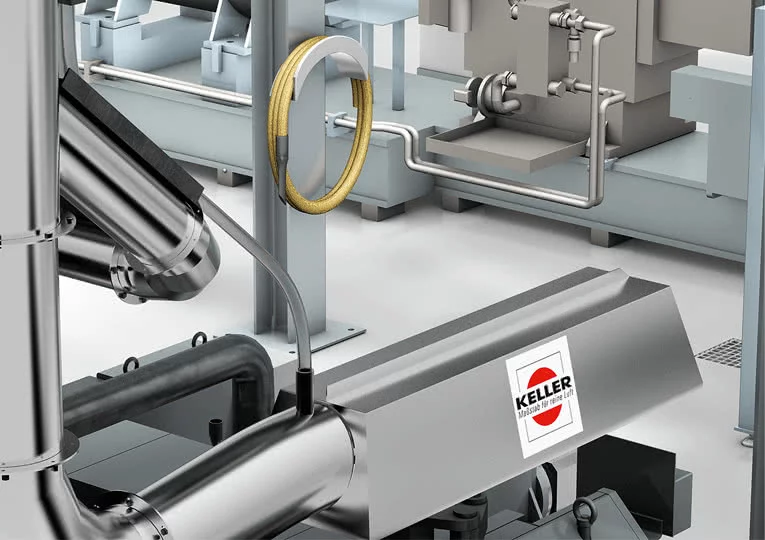

The system consists of branched, narrow ducting. Suction connections are supplied at pre-determined points to which a flex-hose can be attached by quick couplings. A variety of suction nozzles is available for different applications. The dust flows into the separator through a duct.
Dimensions and technical information
| Type | RF1 | RF2 |
|---|---|---|
| Max. air flow [m³/h] | 3680 | 11250 |
| Max. number of filter elements [pc.] | 8 | 12 |
| Filter surface [m²] | 30,7 | 93,8 |
| Floor space (L/W/H) [mm] | 1307 x 1530 x 4317* | 1885 x 1775 x 5641* |
