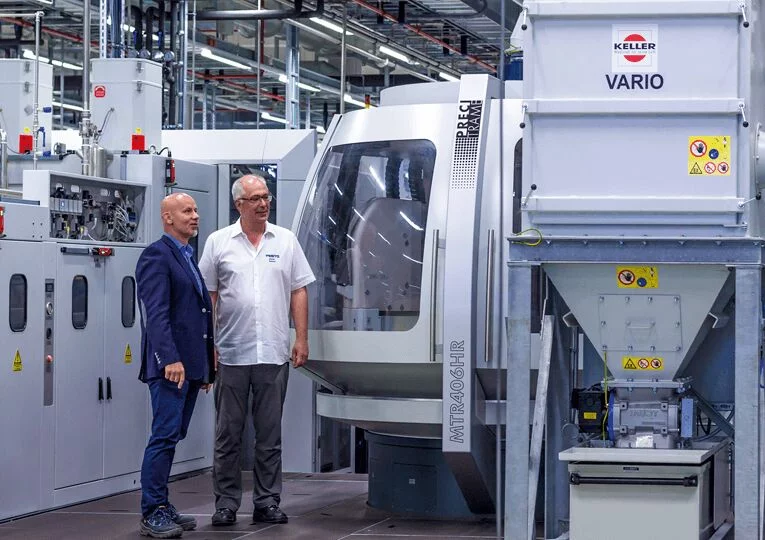

Heating cost savings achieved with clean air - VARIO eco series allows air recirculation and enables versatile applications when using appropriate filters. Most types of dust can be successfully separated such as those created during metal and polymer processing, and in chemical, pharmaceutical and ceramics industries, as well as non-metallic minerals.
For highly effective, energy-efficient dry separation of fine dust
The VARIO eco series is particularly suitable for the separation of fine dust. Most classes of dust can be successfully separated. Significant separation efficiency is achieved with very low energy usage.
Excellent filter performance with low energy requirements
VARIO eco was improved to minimize energy consumption. Savings are achieved with more efficient fans as well as reduced compressed air consumption during filter element cleaning. High degree of separation efficiency allows air recirculation back into the workplace.
Further information:
Technical data for models VARIO 1 - 6

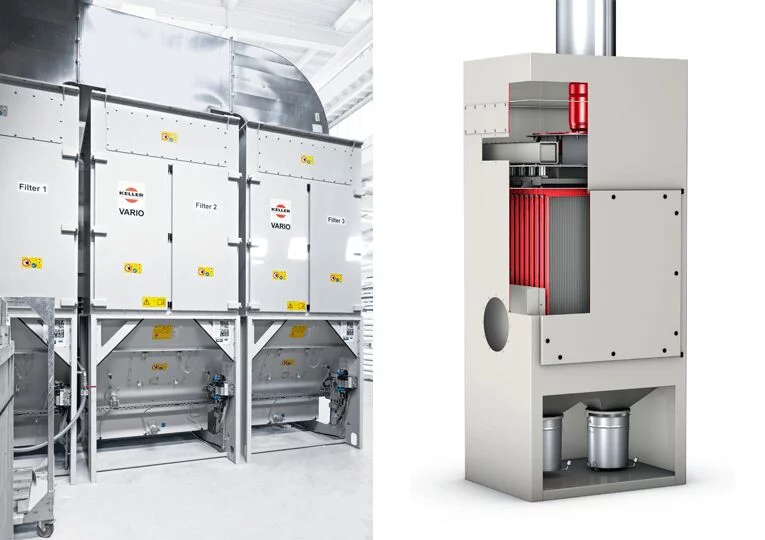

VARIO eco units come in flexible modular design to meet individual requirements such as dust characteristics or the volume of exhaust air.
| Type | VARIO 1 | VARIO 2 | VARIO 3 | VARIO 4 | VARIO 5 | VARIO 6 |
|---|---|---|---|---|---|---|
| Max. air flow [m³/h] | 2300 | 6600 | 9800 | 14500 | 19600 | 29000 |
| Power [kW] | 3,0 | 4,0 - 7,5 | 11,0 - 15,0 | 15,0 - 22,0 | 30,0 - 37,0 | 32,0 - 40,0 |
| Max. number of filter elements [pc.] | 8 | 12 | 14 | 20 | 28 | 40 |
| Filter surface [m²] | 30,7 | 93,8 | 131,7 | 188,2 | 236,4 | 367,4 |
| Floor space (L/W/H) [mm] | 1000 x 860 x 2635 | 1350 x 1050 x 3255 | 1472 x 1472 x 3953 | 1544 x 1544 x 3390 | 2400 x 1542 x 3390 | 1544 x 3084 x 3390 |
