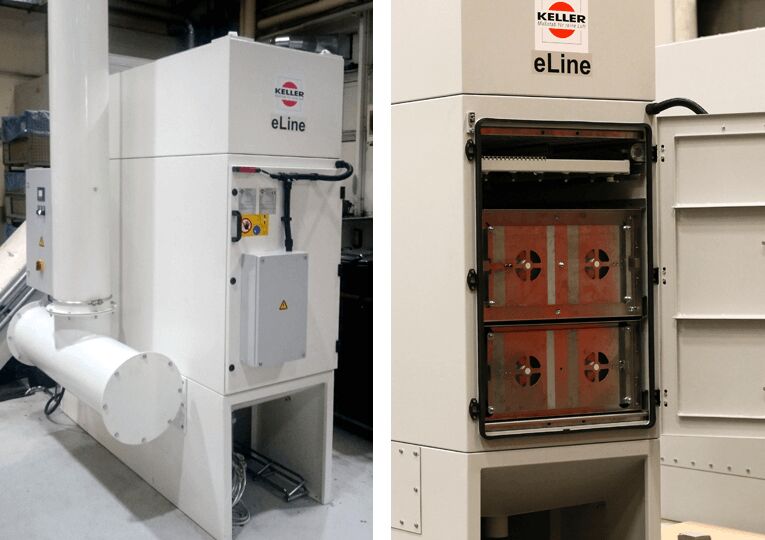

The eLine electrostatic separator efficiently separates adhesive aerosols such as those created during diecasting processes.
Efficient separation of adhesive, highly viscous aerosols from process exhaust air
For example, adhesive emissions are created during die casting processes or screw machine thread rolling, especially when adding lubricants or separating agents.
Highest 24/7 availability by integrated cleaning technology
The automatic cleaning system largely relieves the operator of burdensome cleaning tasks for practically trouble-free 24/7 operation
Modular design is available in three sizes
The eLine electrostatic separator was designed as a flexible and scalable high performance module. The modular design ensures central separation systems with shared functions. Another module can be installed to link the cleaning cycle, for continuous 24/7 operation.
Dimensions and technical information
| Type | eLine 1 | eLine 2 | eLine 3 |
|---|---|---|---|
| Max. air flow [m³/h] | 5000 | 10000 | 15000 |
| sound [dB(A)] | < 75 | < 75 | < 75 |
| Mass [kg] | 1000 | 2000 | 3000 |
| Floor space (L/W/H) [mm] | 750 x 2300 x 2300 | 1500 x 2300 x 2400 | 2250 x 2300 x 2500 |
