Emissions from metal processing such as drilling, turning, milling grinding ... are reliably separated and filtered

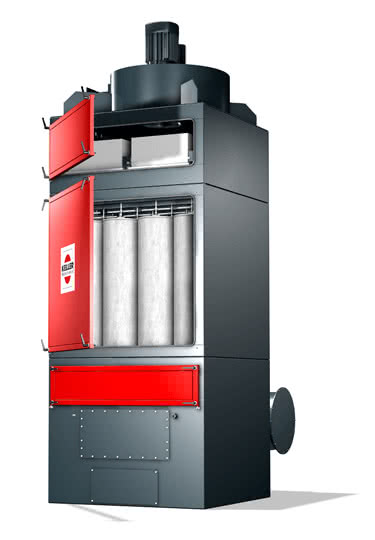

The growth of highly efficient manufacturing processes leads to a considerable increase in the dirty air load from aerosols (mist, fumes and particulate). This reality requires new solutions to meet contemporary industrial requirements. The new AERO® separator was designed and engineered to meet the strictest requirements and enables a reliable separation of oil mist.

Oil mist separation with maximum efficiency on a small required space.

The purified air can be recirculated back into the workroom or vented to the outside depending on operating instructions and Regulations for Air Pollution Control.

Further information:

Brochure "AERO®"

Abstract customer magazine: "AERO® optimizes the separation of very fine coolant aerosols"



Four sizes

AERO® separators are offered in four sizes. The technology is perfectly suitable for most aplications because of the different separation stages - including single small machines.

*min. = lower section without siphon, without down stream filter stage / max. = lower section with siphon, with down stream filter stage
Type AERO Single AERO-1 AERO-2 AERO-3
Max. air flow [m³/h] 2500 4000 7000 12500
Power [kW] 3,0 / 4,0 5,5 / 7,5 11,0 15,0 / 18,5 / 22,0
Max. number of filter elements [pc.] 4 5 9 16
Filter surface [m²] 3,5 4,4 8,0 14,2
Floor space [mm] 800 x 800 1000 x 1000 1200 x 1200 1540 x 1540
Height (min./max.)* [mm] 3070/3670 3180/4680 3250/4750 3600/5100
