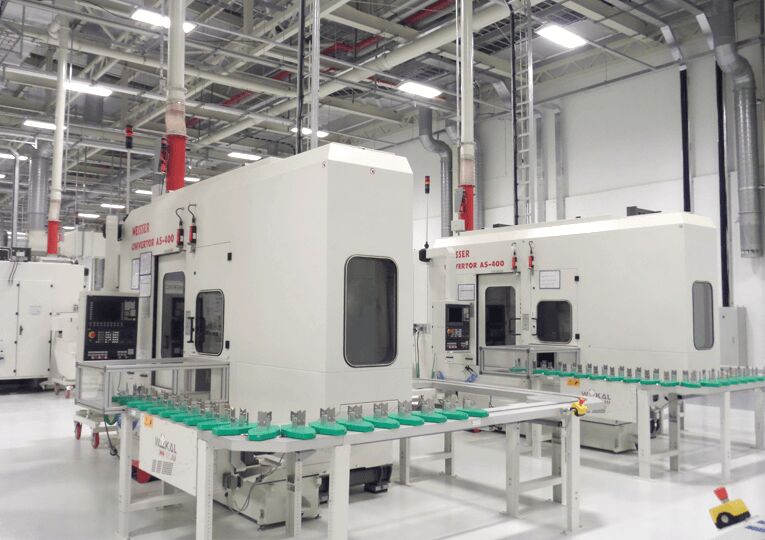

Mit der Volumenstromregelung ProFix kann bei der Absaugung von Werkzeugmaschinen Energie eingespart werden.
Adjusting, monitoring and regulating the air flow

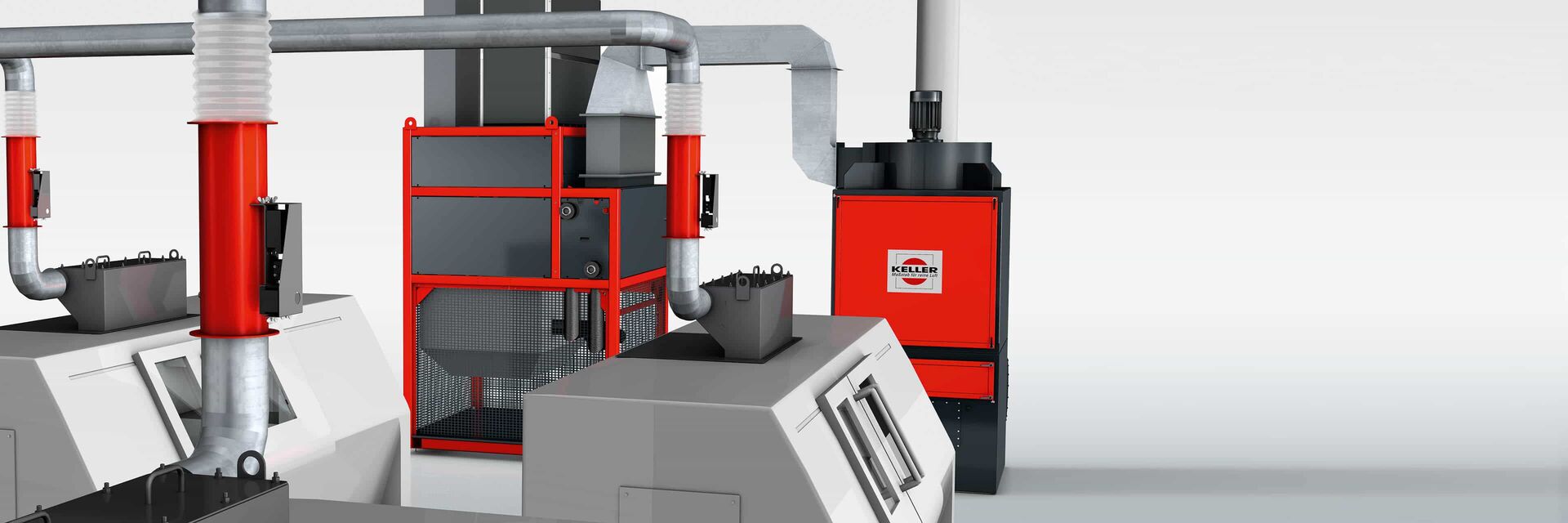

During the extraction of machine tools and machining centers, the energy savings gained through demand-based air flows are becoming increasingly important. With ProFix air flow control, a fixed air flow can be set, monitored and regulated on individual machines, as required.
A component with many features and benefits
The ProFix significantly improves the interface between the machine tool and the extraction sytem. ProFix maintains and monitors the pre-set air flow, achieving energy savings.
Further information:
Dimensions and technical data
| Switch size | NW [mm] | Length [mm] | Measurement range [m³/h] | Measurement range with 10 % control tolerance [m³/h] |
|---|---|---|---|---|
| ProFix125 | 125 | 650 | 150 - 1000 | 500 - 1000 |
| ProFix140 | 140 | 650 | 250 - 1200 | 600 - 1200 |
| ProFix160 | 160 | 650 | 350 - 1600 | 800 - 1600 |
| ProFix180 | 180 | 650 | 400 - 2000 | 1000 - 2000 |
| ProFix200 | 200 | 700 | 500 - 2500 | 1250 - 2500 |
| ProFix224 | 224 | 700 | 650 - 3200 | 1600 - 3200 |
| ProFix250 | 250 | 750 | 800 - 4000 | 2000 - 4000 |
| ProFix280 | 280 | 750 | 1000 - 5000 | 2500 - 5000 |
