ProTERM reduziert den Lüftungswärmebedarf um bis zu 95% im Vergleich zu Systemen ohne Wärmerückgewinnung.
Use the heat energy from process exhaust air and save on heating costs

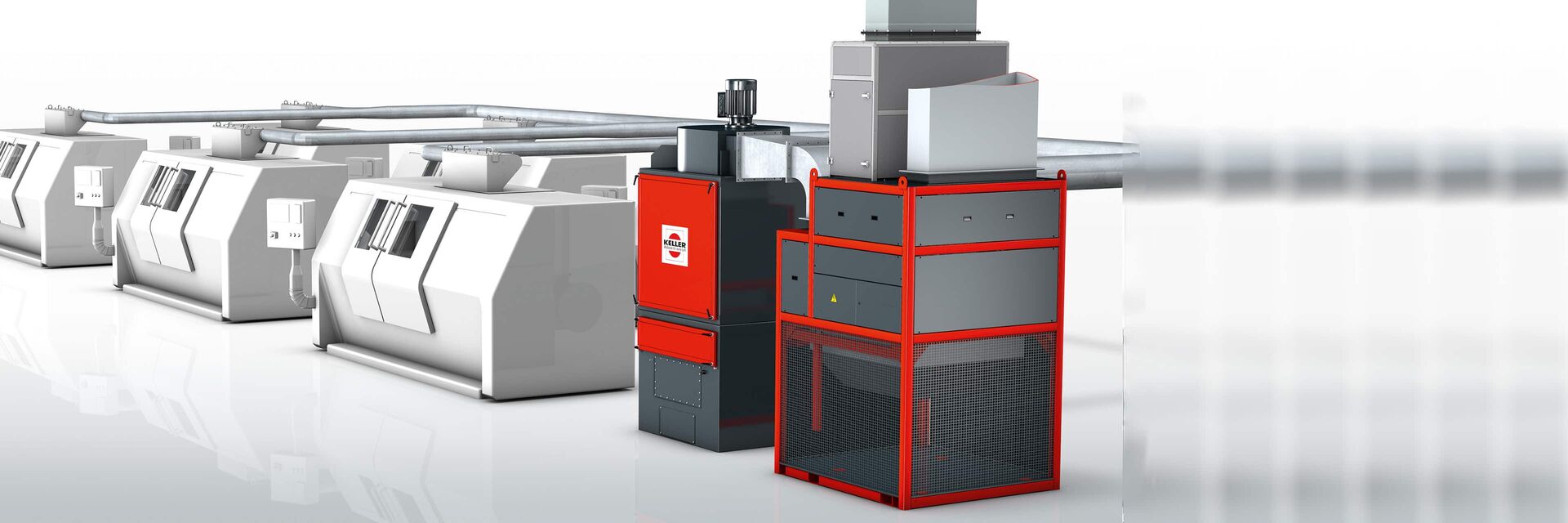

ProTERM combines filtration technology with internal air conditioning systems in industrial plants and re-uses the heat energy from process exhaust air to heat the incoming outside fresh air supply. A specially developed control system ensures optimal interaction of all components.
Process exhaust air and cool outdoor air are directed past each other in the cross-flow heat exchanger. Because of its two separate air streams using separate channels, the fresh air supply is not contaminated. The exhaust air is then released through the roof. The heat is efficiently transferred.
Flexible use, reliable and economical
ProTERM - economical, amortises investment costs in a short time
ProTERM - environmentally-friendly, provides excellent emission values
ProTERM - smart and comfortable, easy to install, integrate, expand and retrofit
Technical data
| ProTERM | |
|---|---|
| Airflow | 8000 – 12500 m³/h |
| Cooling efficiency | max. 124 kW |
| Heating efficiency | max. 191 kW |
| Length | 2000 mm |
| Width | 2005 mm |
| Height | 4339 mm |
| Weight | 2100 kg |
