Keller verfügt über verschiedene Vorabscheider-Typen, um für jede Anforderung die passende Lösung bieten zu können: Zyklonabscheider AS, Prallabscheider PA und Material-Vorabscheider MVA.

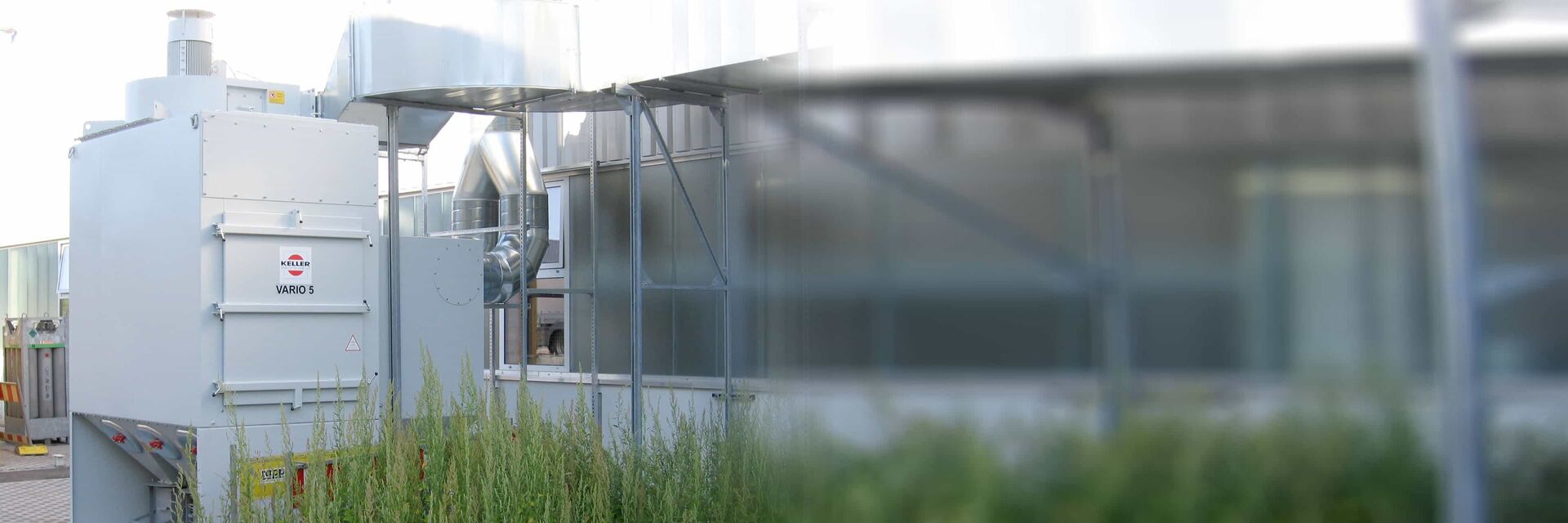

Discharging coarse, fine and combustible particles to protect filters

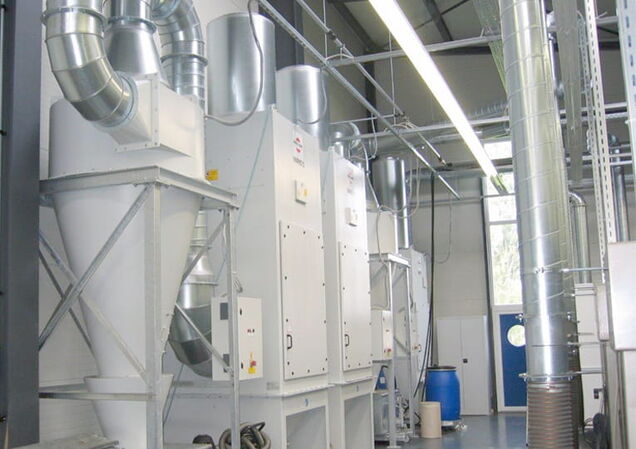

Pre-separators from Keller Lufttechnik are used to discharge coarse, fine and combustible particles. This protects the filter media and minimizes wear. Additionally, the capturing volume increases. When used as a spark pre-separator they minimize the risk of fire.
Suitable pre-separator for any requirement
The pre-separators operate either according to the principle of centrifugal force or by using the thermal energy of particles. From the adjacent air inlet, the centrifugal force catapults the dust particles against the outer wall and down into the hopper discharge. The thermal energy output of the particlse is reduced by deflection inside the hopper area so that coarse particles are separated.
Further information:
Technical data
Dimension sheet material Pre-Separator
| Type | 045 | 050 | 056 | 063 | 071 | 080 | 090 | 100 | 112 | 125 | 140 | 160 | 180 | 200 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Diameter (D) | 800 | 900 | 1000 | 1120 | 1250 | 1400 | 1600 | 1800 | 2000 | 2240 | 2500 | 2800 | 3150 | 3550 |
| Height (H) | 1500 | 1670 | 1800 | 2010 | 2225 | 2500 | 2820 | 3190 | 3500 | 4010 | 4400 | 4960 | 5595 | 6275 |
| kg (MVA) | 75 | 95 | 120 | 135 | 180 | 235 | 300 | 355 | 410 | |||||
| kg (MVAS) | 145 | 180 | 225 | 260 | 350 | 450 | 470 | 608 | 900 | 1020 | 1960 | 2350 | 3190 | 3660 |
Volume flow [thousand m³/h] with pressure difference Δp
| Type | 045 | 050 | 056 | 063 | 071 | 080 | 090 | 100 | 112 | 125 | 140 | 160 | 180 | 200 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Δp = 90 daPa | 3,2 | 4 | 5 | 6 | 8 | 10 | 12,5 | 16 | 20 | 25 | 32 | 40 | 50 | 63 |
Dimension sheet Pre-Separator
| Type | PA 1 | PA 2 | PA 3 | PA 4 | PA 5 | PA 6 | |
|---|---|---|---|---|---|---|---|
| Max. airflow | m³/h | 3000 | 7000 | 10000 | 14000 | 20000 | 22000 |
| Pressure loss | daPa | 80 | 80 | 80 | 60 | 60 | 60 |
| Lenght (A) | mm | 770 | 1065 | 1365 | 1555 | 2400 | 2400 |
| Width (B) | mm | 690 | 735 | 865 | 1010 | 1000 | 1000 |
| Height (H) | mm | 2100 | 2400 | 3065 | 3110 | 2835 | 3237 |
Dimension sheet cyclone Pre-Separator
| Type | 40 | 45 | 50 | 56 | 63 | 71 | 80 | 90 | 100 |
|---|---|---|---|---|---|---|---|---|---|
| Diameter (D) | 630 | 710 | 800 | 900 | 1000 | 1120 | 1250 | 1400 | 1600 |
| Height (H) | 2275 | 2875 | 2975 | 3380 | 3735 | 4310 | 4700 | 5210 | 5580 |
| kg (AS) | 100 | 140 | 158 | 190 | 246 | 315 | 377 | 480 | 545 |
| kg (ASS) | 142 | 183 | 221 | 265 | 450 | 660 | 760 | 823 | 1037 |
